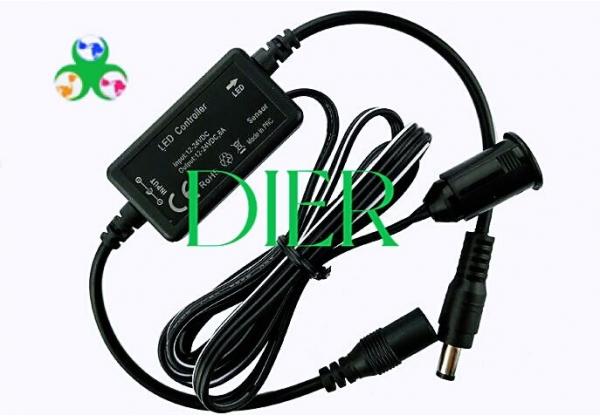

LED Controllers led sensor controller 01
-
-
Large Image :LED Controllers led sensor controller 01
Product Details:
| Place of Origin: |
Guangdong, China (mainland) |
| Brand Name: |
dier lighting |
| Model Number: |
led sensor controller 01 |
| Certification: |
RoHS |
Payment & Shipping Terms:
| Minimum Order Quantity: |
100 |
| Price: |
|
| Delivery Time: |
5-7days |
| Payment Terms: |
TT or paypal or Western Union |
| Supply Ability: |
30,000pcs/month |
Detailed Product Description
-
Product Introduction:
MINI sensor switch controller for single color LED strip Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology for controlling constant voltage LED lamps. The function is automatically switch on/off the light by the operation of people close the door to block the ITR sensor or open the door to release the blocking.
-
Product Features
-
Designed for single color constant voltage LED lights in cabinet/ furniture application.
-
DC12-24V, output current: 1ch*6A.
-
Stable sensitivity with ITR sensor, soft light up and down.
-
3-year warranty exclude the artificial situation of damaged or overload working.
Technical Parameters
|
Working temperature |
0-45℃ |
Supply voltage |
DC12V-24V |
|
Static power consumption |
<1W |
Sensor |
ITR |
|
Sensor range |
0-8CM |
Sensor cable |
1 meter |
|
External dimension |
L48*W26*H13 mm |
Packing size |
L100*W65*H40mm |
|
Net weight |
50g |
Gross weight |
65g |
|
Output |
1 channel |
Output current |
≤6A |
|
PWM frequency |
490Hz |
Max. Output power |
12V:<72W, 24V:<144W
|
